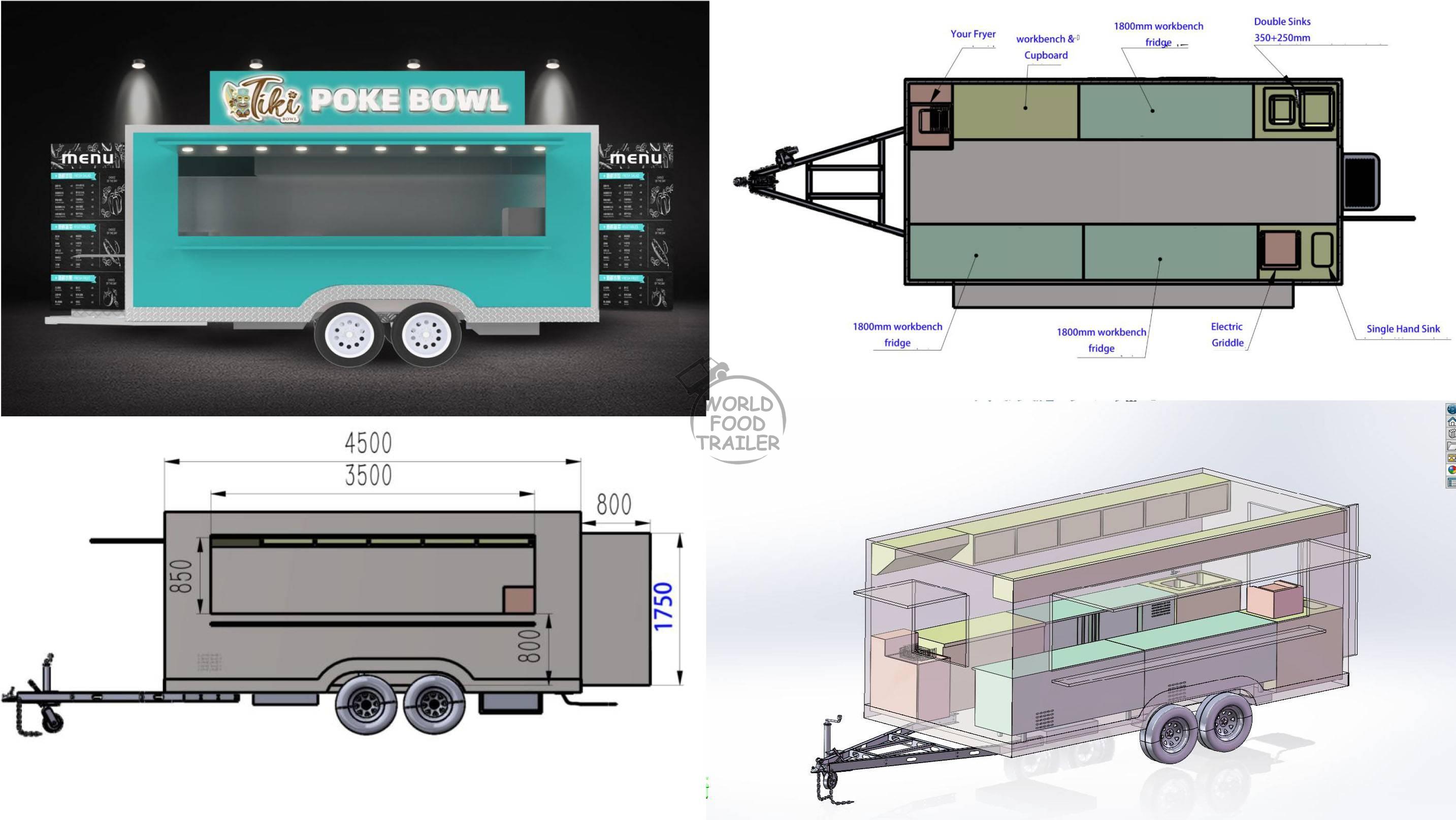

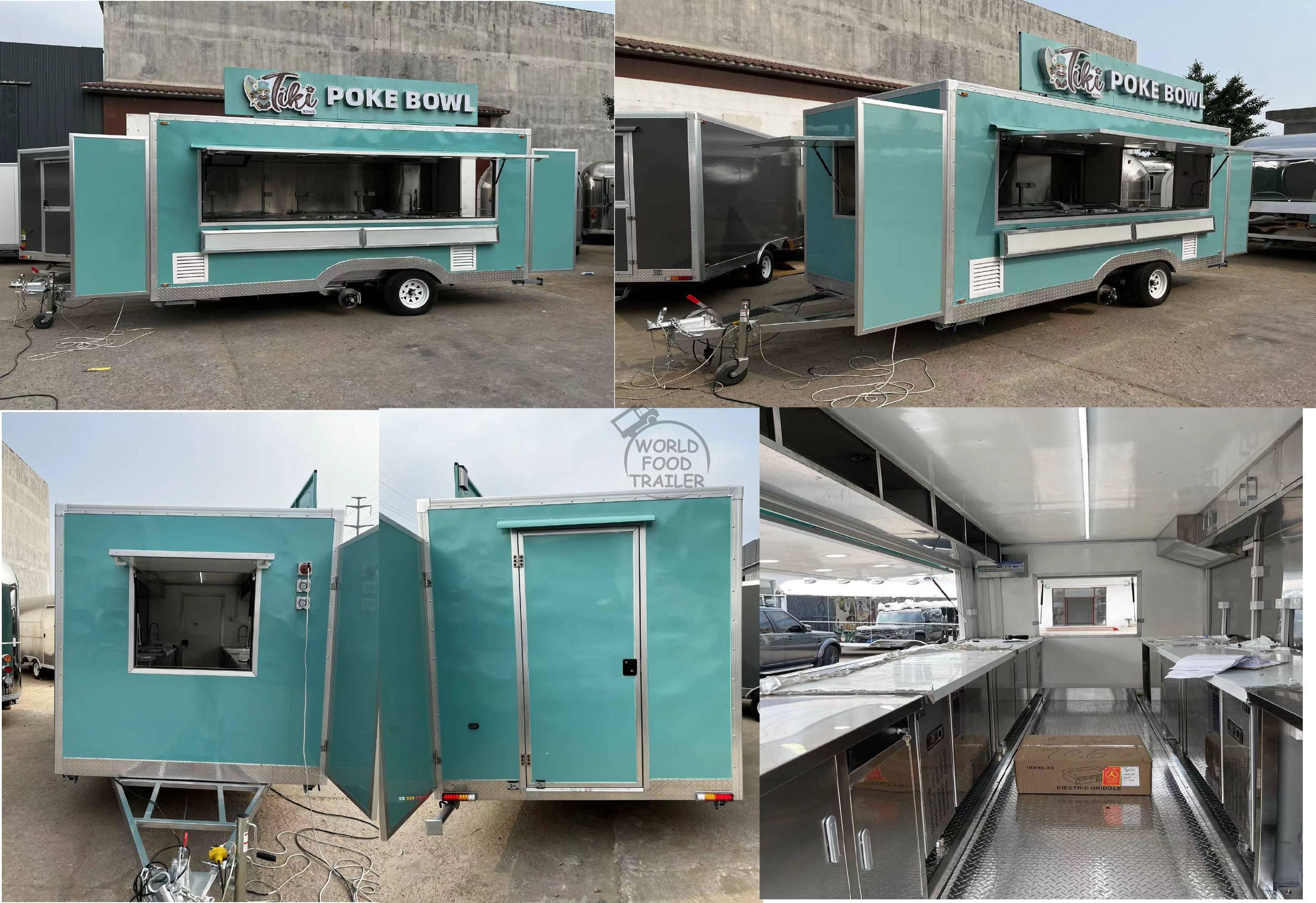

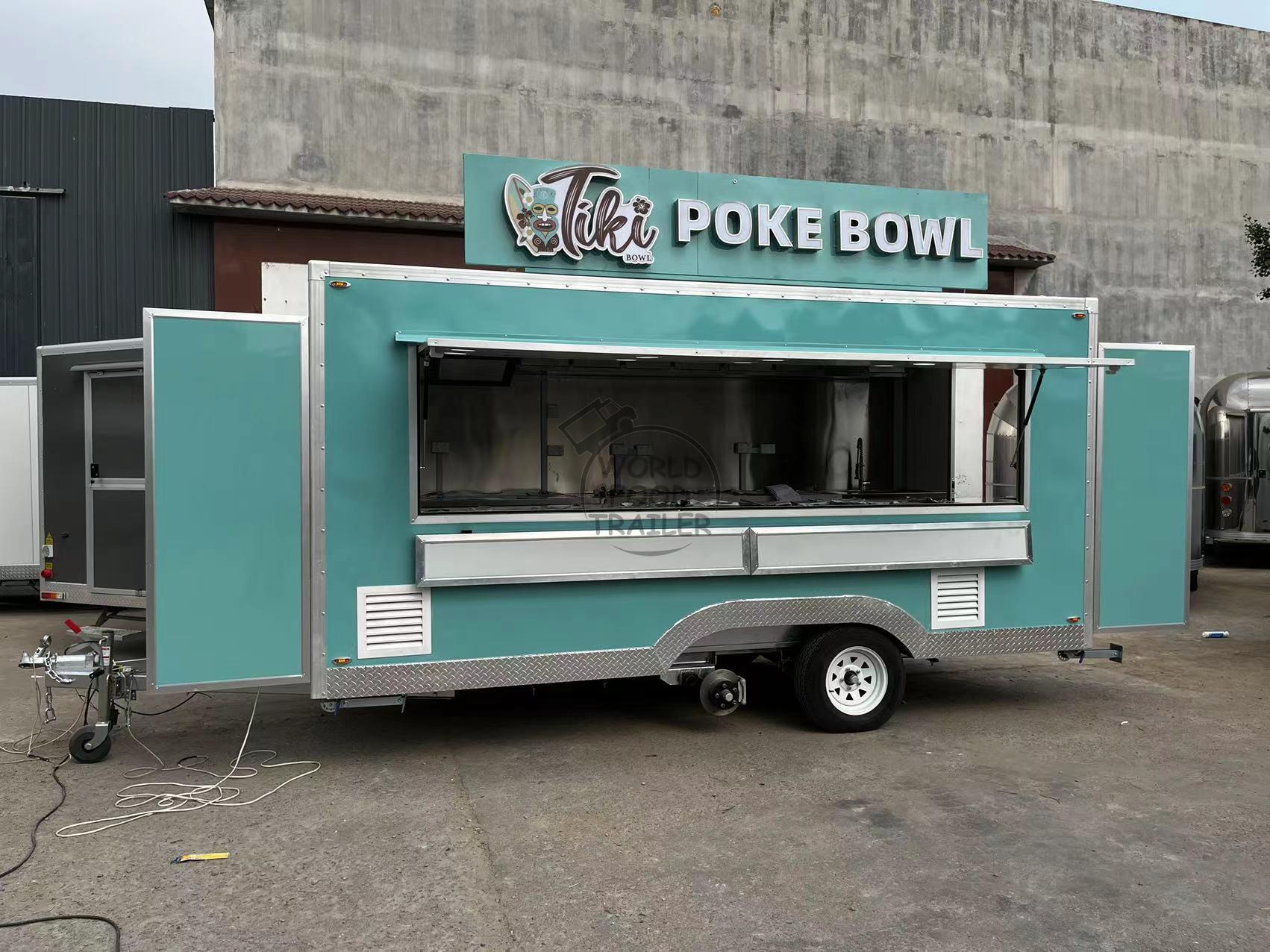

4.5M Square Box Food Trailer, Brisbane

Size : 4500mm*2100mm*2400mm
Weight:1500KG
Tow Bar : 1500mm
AXLES: 1
Product description: WorldFoodTrailer-CSP HOLDING GROUP, 4.5m long square food trailer, Food Truck, Food Trailer, Australia Standard Food Truck, Brisbane Trailer
INQUIRY

1.Product Description:

Please noted that all trailer or vans sizes and inside can be customized:

Model No.	CSP-48FT
Body Size	450021002400MM
Overall Size	600021002000MM
AXLES	2
WHEELS	185R14C
MOQ	1 SET
20GP	1 SET
40GP	1 SET

This Trailer Items: (customized according to Customer's detailed demands)

4500*2100*2400mm
Tow Bar：1500mm
Total :6000*2100*2400mm
Double Wash Sinks & Hand Sink & Pump, tanks, electric water heater+100L & 100L stainless steel water tanks, under chassis
Workbench & Cupboard （Stainless Steel 304）
Top Shelves+Top Cupboards
Range Hood+Stainless Steel Walls
Working bench fridge ( half fridge half freezer) *3 units
Aluminum Box for Generator & Gas Bottles
Retractable step
Automatic Liftable Led Banner
3 units of Australia Standard 15A Power Connectors + Inside all power sockets

Youtube: youtu.be/oDoS6JtAZjI

Basic Configurations:

1) Wall:50mm Fiber Glass material with intermediate heat insulation cotton.
2) Chassis and Frame:Hot dip galvanized Integral steel frame construction treated with rust resistant protective coating.
3) Towbar with brake:Drawbar with safety ball headed coupling.Mechanical Brake System+Hand Brake System.
4) Floor:Checked aluminum sheet or Australia standard vinyl floor,easy to be cleaned.
5) Power:LED light,cable socket switch circuit breaker based on global standard as needed are all included.
6) Window and door:1 door on back ,1 service window on side.1 window in front.
7) Working bench:food grade SUS 304 with sliding door undernearth.
8) Wheel:Two Torsion axles with 4*185 R14 wheels.
9) Gas holder:1 piece/welded on towbar/stainless steel.
10) Water systems:Heavy-duty water system plumbing with automatic water pump, 12V high pressure water pump; on/off control switch; Double stainless steel sinks with faucet, cold and hot water, fresh water tank and waste water tank.
11) Maximum Speed :150KPH.
12) Warranty:1 year
13) Character:Beauty Shapes,High Strengthen,Anti-Corrosion,Anti-dust,Fire-Resistance and so on.Suitable to be used in wet and high corrosive environment,smooth and easy to clean.
